Environment Setup

This guide covers the Sitecore-side configuration required before running the XP → SitecoreAI migration recipe in Kajoo Agentic. You'll need to complete both sections — one for your source XP environment and one for your target SitecoreAI (formerly XM Cloud) environment.

SitecoreAI (formerly XM Cloud)

1. Create the starter repository

Create a new repo from github.com/Sitecore/xmcloud-starter-js.

2. Enable SPE Remoting

In /authoring/platform/, create App_Config/Include/Spe/zzz.spe.remoting.config with this content:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <powershell>
      <services>
        <fileDownload><patch:attribute name="enabled">true</patch:attribute></fileDownload>
        <mediaDownload><patch:attribute name="enabled">true</patch:attribute></mediaDownload>
        <remoting>
          <patch:attribute name="requireSecureConnection">true</patch:attribute>
          <patch:attribute name="enabled">true</patch:attribute>
        </remoting>
      </services>
    </powershell>
    <pipelines>
      <owin.cookieAuthentication.validateIdentity>
        <processor type="Sitecore.Owin.Authentication.Pipelines.CookieAuthentication.ValidateIdentity.ValidateSiteNeutralPaths, Sitecore.Owin.Authentication">
          <siteNeutralPaths hint="list">
            <path hint="spe">/sitecore%20modules/PowerShell</path>
          </siteNeutralPaths>
        </processor>
      </owin.cookieAuthentication.validateIdentity>
    </pipelines>
    <log4net><logger name="Spe"><level patch:attribute="value" value="DEBUG"/></logger></log4net>
  </sitecore>
</configuration>

Add the following line to the authoring/platform/Platform.csproj file under the ItemGroup section:

<Content Include="App_Config\Include\Spe\zzz.Spe.remoting.config" />

What needs to be added:

• Line to add: <Content Include="App_Config\Include\Spe\zzz.Spe.remoting.config" />
• Location: Inside the <ItemGroup> section of authoring/platform/Platform.csproj
• Position: After the <Folder Include="App_Config\Include\" /> line

Your ItemGroup should look like this after the addition:

<ItemGroup>
  <Folder Include="App_Config\Include\" />
  <Content Include="App_Config\Include\Spe\zzz.Spe.remoting.config" />
</ItemGroup>

3. Deploy the SitecoreAI project

Create the project in the Sitecore Cloud Portal, link your GitHub repo, and trigger the initial deployment.

4. Create automation credentials

In the Cloud Portal go to Credentials → Create New → Automation. Save the Client ID and Client Secret — you'll share these with Kajoo.

5. Set environment variables

Go to Project → Authoring Environment → Variables and add:

Trigger a redeployment after saving — variables don't take effect until the next deploy.

6. Create the SPE Remoting user

In Role Manager, create the role sitecore\PowerShell Extensions Remoting (if it doesn't exist).

Then in User Manager create a user named SpeRemote, assign that role, and tick Administrator. Save the password — you'll share it with Kajoo.

Sitecore XP (Headless)

1. Confirm accessibility

The CM instance must be reachable over HTTPS. If Azure-hosted with restricted access, whitelist the Kajoo Agentic IP 20.51.153.117/32 — confirm the current IP with your Kajoo contact before applying.

2. Verify required modules are installed

You need: Sitecore PowerShell Extensions (SPE), Sitecore Services Client (SSC), Sitecore Management Services, and Headless Services / JSS. If Management Services is missing, download it from developers.sitecore.com/downloads/Sitecore_CLI.

3. Register a non-interactive client

Follow the Sitecore walkthrough for non-interactive client login on your Identity Server. Save the Client ID, Client Secret, and Authority URL — you'll share these with Kajoo.

4. Configure IIS authentication

Apply the IIS authentication settings only to the Sitecore CM website and the PowerShell Services folder.

Do not apply these settings at the IIS server/root level. Configure them only at:

• Sites > Sitecore CM site
• Sites > Sitecore CM site > sitecore modules > PowerShell > Services

Authentication Settings

Configure Authentication for both the CM site and the PowerShell Services folder as follows:

Configuration Methods

You can apply these settings in two ways:

Option 1: IIS Manager

Use the IIS Manager interface to configure the authentication settings directly

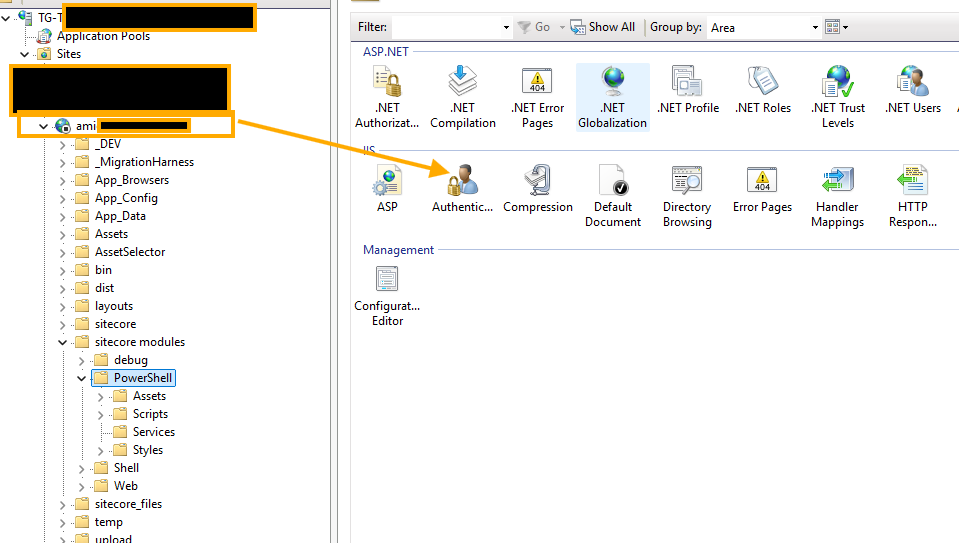

Site Level:

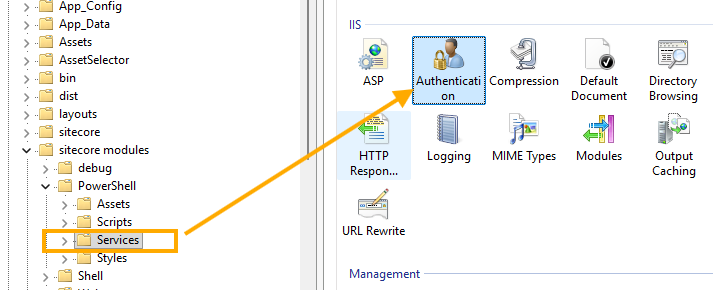

Powershell Level:

Option 2: Web.config

Add a location-specific entry in the CM site's web.config file for powershell services

<?xml version="1.0" encoding="utf-8"?>
<configuration>

  <!-- your normal root Sitecore config here -->

  <location path="sitecore modules/PowerShell/Services">
    <system.webServer>
      <security>
        <authentication>
          <anonymousAuthentication enabled="true" />
          <basicAuthentication enabled="false" />
          <windowsAuthentication enabled="false" />
        </authentication>
      </security>
    </system.webServer>
  </location>

</configuration>

5. Enable SPE Remoting

Create App_Config/Include/Spe/zzz.spe.remoting.config:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/"
  xmlns:role="http://www.sitecore.net/xmlconfig/role/"
  xmlns:security="http://www.sitecore.net/xmlconfig/security/">
  <sitecore role:require="Standalone or ContentManagement" security:require="Sitecore">
    <powershell>
      <services>
        <fileDownload><patch:attribute name="enabled">true</patch:attribute></fileDownload>
        <mediaDownload><patch:attribute name="enabled">true</patch:attribute></mediaDownload>
        <remoting>
          <patch:attribute name="requireSecureConnection">true</patch:attribute>
          <patch:attribute name="enabled">true</patch:attribute>
        </remoting>
      </services>
    </powershell>
    <pipelines>
      <owin.cookieAuthentication.validateIdentity>
        <processor type="Sitecore.Owin.Authentication.Pipelines.CookieAuthentication.ValidateIdentity.ValidateSiteNeutralPaths, Sitecore.Owin.Authentication">
          <siteNeutralPaths hint="list">
            <path hint="spe">/sitecore%20modules/PowerShell</path>
          </siteNeutralPaths>
        </processor>
      </owin.cookieAuthentication.validateIdentity>
    </pipelines>
    <log4net><logger name="Spe"><level patch:attribute="value" value="DEBUG"/></logger></log4net>
  </sitecore>
</configuration>

The role:require attribute scopes this to CM/Standalone only — intentional on XP topologies that include CD servers.

6. Create the SPE Remoting user

Same as SitecoreAI step 6: create role sitecore\PowerShell Extensions Remoting, create user SpeRemote with that role and Administrator privileges. Save the password.

7. Validate the GraphQL endpoint

Confirm /sitecore/api/graph/items/master returns a valid response before sharing credentials with Kajoo.

Credentials to share with Kajoo

Once setup is complete, send these to your Kajoo contact via a secure channel.

SitecoreAI instance

XP instance

Common issues
